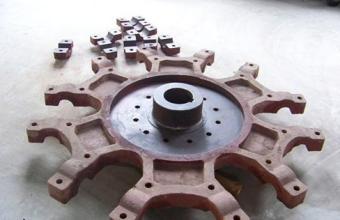

Raymond Roller Mill Parts- Plum Blossom

Raymond Roller Mill Parts- Plum Blossom

Product introduction:

The main body of Raymond mill drives the central shaft through the transmission. The upper end of the central shaft is connected with a main part plum blossom frame. The Raymond roller mill parts is mounted on the plum blossom frame.
The main body of Raymond mill drives the central shaft through the transmission. The upper end of the central shaft is connected with a main part plum blossom frame. The Raymond roller mill parts is mounted on the plum blossom frame. The plum blossom frame is driven by the main drive to rotate rapidly. The grinding ring is fixed and electromagnetic. The vibrating feeder feeds the material quantitatively, uniformly and continuously into the main machine, and is ground between the grinding roller and the grinding ring. Because the airflow draws in a tangential direction from the lower part of the grinding ring, through the grinding zone between the grinding roller and the grinding ring, the dust is entrained into the wind classifier on the upper part of the mill. There are 3-5 grinding rollers installed on the plum blossom frame, which not only revolves around the central axis, but also the grinding roller itself rotates due to friction.
raymond roller mill parts

The company's long-term supply of Raymond roller mill parts, strong pressure mill accessories, ultra-fine powder machine accessories! 3R1510, 2115, 2615, 2715, 3015, 3016 Raymond mill accessories, 4R3216, 3117, 3220 Raymond mill accessories, 5R4119, 4220 Raymond mill accessories , 65 type, 75 type, 85 type, 95 type suspension roller strong pressure mill accessories, 7826 type, 8327 type, 9531 type ultra fine powder mill accessories.

Common accessories of Raymond mill are: grinding roller assembly, grinding roller, grinding ring, grinding roller upper and lower gland, blade, blade holder, plum blossom frame, spindle, spindle seat, rubber sleeve, oil seal, gland, Air duct, reducer, analysis machine, analysis machine leaf disc, etc., price concessions, large favorably!
