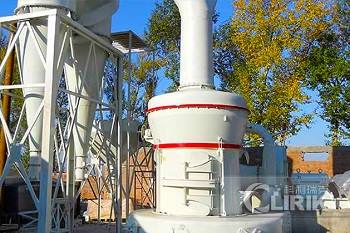

Clirik YGM High Capacity Roller Mill
Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Limestone Powder Production Line Raymond Mill,The Clirik Limestone Powder Production Line Raymond Mill have five models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.
Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The
YGM highcapacity roller mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh
Introduction of Clirik YGM High Capacity Roller Mill
Clirik YGM High Capacity Roller Mill, also known as Raymond Grinder or Pendulum Grinder, is designed by Clirik Machinery with Germany technology. The Limestone Powder Production Line Raymond Mill is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.
Features of Clirik YGM High Capacity Roller Mill
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.
Structure of Clirik YGM High Capacity Roller Mill
Clirik YGM High Capacity Roller Mill is mainly composed of main unit, analyzer, fan, discharging cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Working principle of Clirik YGM High Capacity Roller Mill
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.
Technical Parameter of Clirik YGM High Capacity Roller Mill
|
Type |
Roller |
Max. feeding size(mm) |
Fineness of product(mm) |
Output (t/h) |
Power of machine(KW) |
Size(mm) |
|
No. |
Dimension(mm) |
Height(mm) |
|
YGM7815 |
3 |
260 |
150 |
15 |
0.613-0.033 |
1-3 |
18.5 |
4300*3500*5100 |
|
YGM8314 |
3 |
270 |
140 |
20 |
0.613-0.033 |
1.2-4.6 |
22 |
5300*4100*5200 |
|
YGM9517 |
4 |
310 |
170 |
25 |
0.613-0.033 |
2.1-5.6 |
37 |
7100*5900*7900 |
|
YGM4121 |
5 |
410 |
210 |
30 |
0.613-0.033 |
2.8-10.5 |
75 |
9200*7250*9700 |
|
MTM1600 |
6 |
440 |
270 |
35 |
0.613-0.033 |
5-20 |
132 |
12550*5700*8350 |
Notice: Any change of Limestone Powder Production Line Raymond Mill technical data shall not be advised additionally.
Price of Clirik YGM High Capacity Roller Mill
If you want to know the Limestone Powder Production Line Raymond Mill price or have any questions about Limestone Powder Production Line Raymond Mill, please do not hesitate to contact us.
