Clirik YGM 3r/4r/5r/6r pendulum roller mill

Clirik YGM 3r/4r/5r/6r pendulum roller mill

Product introduction:

Clirik YGM 3r/4r/5r/6r pendulum roller mill: Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Clirik YGM 3r/4r/5r/6r pendulum roller mill.The Clirik Clirik YGM 3r/4r/5r/6r pendulum roller mill have five models: YGM7

Clirik YGM 3r/4r/5r/6r pendulum roller mill


Shanghai Clirik Machinery Co., Ltd is a large professional manufacturer of Clirik YGM 3r/4r/5r/6r pendulum roller mill,The Clirik Clirik YGM 3r/4r/5r/6r pendulum roller mill have five models: YGM7815,YGM8314,YGM9517,YGM4121,MTM1600.
Shell Size:15-35mm
Grinding Weight:1.2 - 11 T
Application:The Clirik YGM 3r/4r/5r/6r pendulum roller mill is widely used in small and medium mining, chemicals, building materials, metallurgy, refractories, pharmaceuticals, cement and other industries.
Raw Material:such as gypsum, talc, calcite, limestone, marble, barite, dolomite, granite, kaolin, bauxite, fly ash , oxidation iron oxide red, iron ore, etc.
Output:30 - 425 mesh

Clirik YGM 3r/4r/5r/6r pendulum roller mill

Introduction of Clirik YGM 3r/4r/5r/6r pendulum roller mill


Clirik YGM 3r/4r/5r/6r pendulum roller mill, also known as Raymond Grinder or Pendulum Grinder, is designed by Clirik Machinery with Germany technology. The Clirik YGM 3r/4r/5r/6r pendulum roller mill is more efficient than ball mill in some area, with features of closed circuit for high fine powder devices.

Clirik YGM 3r/4r/5r/6r pendulum roller mill Features


1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.

Structure of Clirik YGM 3r/4r/5r/6r pendulum roller mill

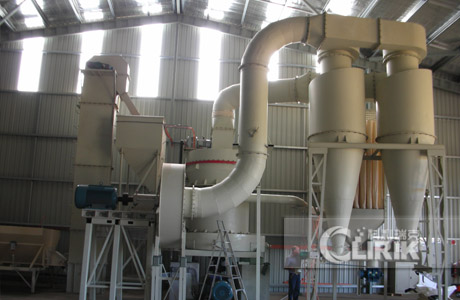

Clirik YGM 3r/4r/5r/6r pendulum roller mill is mainly composed of main unit, analyzer, fan, discharging cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.

structure of Clirik YGM 3r/4r/5r/6r pendulum roller mill

Working principle of Clirik YGM 3r/4r/5r/6r pendulum roller mill


The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.

Technical Parameter of Clirik YGM 3r/4r/5r/6r pendulum roller mill


Type Roller Max. feeding size(mm) Fineness of product(mm) Output (t/h) Power of machine(KW) Size(mm)
No. Dimension(mm) Height(mm)
YGM7815 3 260 150 15 0.613-0.033 1-3 18.5 4300*3500*5100
YGM8314 3 270 140 20 0.613-0.033 1.2-4.6 22 5300*4100*5200
YGM9517 4 310 170 25 0.613-0.033 2.1-5.6 37 7100*5900*7900
YGM4121 5 410 210 30 0.613-0.033 2.8-10.5 75 9200*7250*9700
MTM1600 6 440 270 35 0.613-0.033 5-20 132 12550*5700*8350
Notice: Any change of  Clirik YGM 3r/4r/5r/6r pendulum roller mill technical data shall not be advised additionally.

Clirik YGM 3r/4r/5r/6r pendulum roller mill Price


If you want to know the Clirik YGM 3r/4r/5r/6r pendulum roller mill price or have any questions about Clirik YGM 3r/4r/5r/6r pendulum roller mill, please do not hesitate to contact us.
